Number

​

Configuration Options

​

Input Validation

• Minimum Value: Set the lowest acceptable number (supports variables)
• Maximum Value: Set the highest acceptable number (supports variables)
• Step Value: Define increment/decrement steps for input controls
• Automatic validation prevents out-of-range submissions

​

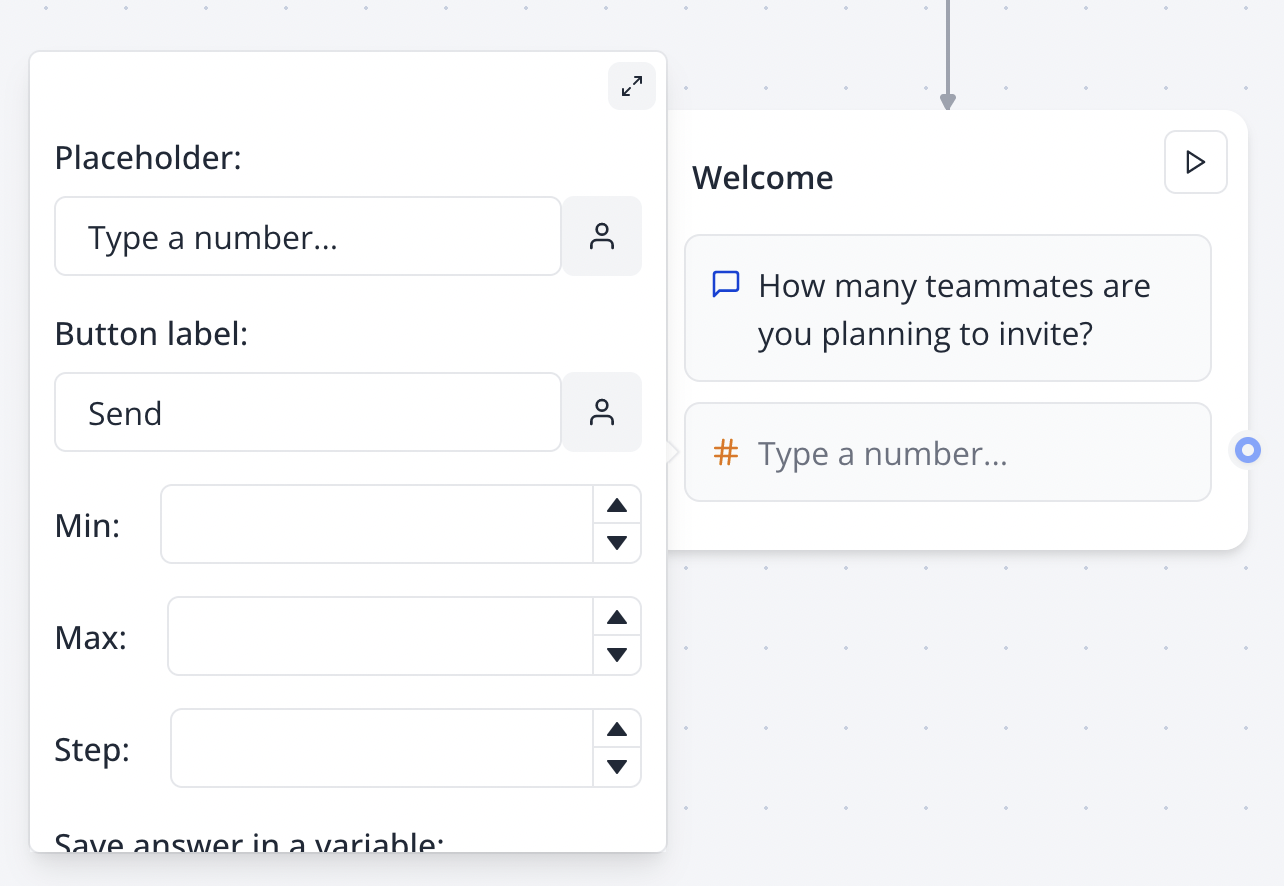

Custom Labels

• Placeholder: Set placeholder text shown in the number input field
• Button Label: Customize the text shown on the submit button

​

Variable Integration

• Save Answer: Choose a variable to store the collected number
• All constraint fields support variable integration for dynamic limits

• Flow
• Bot

​

Validation Features

​

Range Validation

• Values below minimum are rejected
• Values above maximum are rejected
• Users must re-enter valid values to proceed
• Clear validation feedback for out-of-range attempts

​

Input Type Enforcement

• Uses HTML5 number input type for optimal user experience
• Mobile devices display numeric keyboards automatically
• Prevents non-numeric character entry
• Supports decimal numbers and negative values (when min allows)

​

Step Validation

• Input controls increment/decrement by the step amount
• Validates that entered values align with step intervals
• Useful for specific increments (e.g., multiples of 5, 10, 0.5)

​

Advanced Features

​

Dynamic Constraints

• Dynamic Minimum: Use variables to set contextual lower bounds
• Dynamic Maximum: Use variables to set contextual upper bounds
• Dynamic Step: Adjust step values based on collected data
• Enables complex validation scenarios and business logic

​

Mobile Optimization

• Numeric keypad on mobile devices
• Touch-friendly increment/decrement buttons
• Responsive layout adaptation
• Optimized for various screen sizes

​

Accessibility

• Proper ARIA labeling for screen readers
• Keyboard navigation support
• High contrast compatibility
• Focus management and validation feedback

​

Use Cases

​

Basic Number Collection

• Age input with reasonable min/max (0-120)
• Quantity selection with step increments
• Score or rating collection
• Simple counting and measurement

​

Advanced Validation Scenarios

• Budget ranges with dynamic limits based on user profile
• Date-based constraints (e.g., years based on age)
• Tiered pricing with step validation
• Inventory-based limits from external data

​

Business Logic Integration

• Dynamic pricing calculations
• Conditional limits based on previous answers
• Multi-step form validation with dependencies
• Complex business rule enforcement

​

Best Practices

​

User Experience

• Set reasonable min/max ranges for the context
• Use clear, descriptive placeholder text
• Choose appropriate step values for the use case
• Provide context about valid ranges when helpful

​

Validation Design

• Consider edge cases (zero, negative numbers, decimals)
• Test boundary values thoroughly
• Provide clear feedback for validation failures
• Balance strictness with user flexibility

​

Variable Integration

• Use descriptive variable names for number storage
• Consider data type requirements for downstream processing
• Plan for null/undefined values in variable-based constraints
• Test dynamic constraint scenarios thoroughly

​

Integration Examples

​

Age Collection

Configuration:
- Min: 0, Max: 120, Step: 1
- Placeholder: "Enter your age"
User Input: 25
Saved Variable: 25

​

Budget Range with Dynamic Limits

Configuration:
- Min: {{userProfile.minBudget}}, Max: {{userProfile.maxBudget}}
- Step: 100, Placeholder: "Your budget"
User Input: 5000
Validation: ✓ Within dynamic range
Saved Variable: 5000

​

Quantity Selection

Configuration:
- Min: 1, Max: 10, Step: 1
- Placeholder: "How many items?"
User Input: 3
Saved Variable: 3

​

Troubleshooting

​

Common Issues

• Verify min/max ranges allow the intended values
• Check that step configuration doesn’t conflict with valid inputs
• Test decimal vs. integer requirements
• Ensure browser supports HTML5 number inputs

• Confirm min/max values are properly configured
• Check that variables used in constraints contain valid numbers
• Verify step alignment with intended input values
• Test boundary conditions (exactly min/max values)

• Ensure a variable is selected in the “Save Answer” dropdown
• Verify variable type compatibility with numeric data
• Check that numbers pass all validation before storage
• Test with various number formats (integer, decimal, negative)

• Confirm input type is set to ‘number’
• Test on actual mobile devices for keyboard behavior
• Verify numeric keypad appears correctly
• Check touch target sizes for increment/decrement controls

​

Validation Considerations

• Consider precision requirements for decimal inputs
• Test step validation with decimal values
• Plan for floating-point arithmetic edge cases
• Validate decimal places in downstream processing

• Explicitly test negative number handling if min < 0
• Consider user expectations for negative value input
• Validate sign handling in mobile keyboards
• Test edge cases around zero crossing

• Consider JavaScript number precision limits
• Test very large number input and storage
• Validate display formatting for large values
• Plan for scientific notation in extreme cases

​

Integration Tips

• Store numbers in appropriate data types for external systems
• Handle number formatting consistently across integrations
• Consider locale-specific number formatting requirements
• Implement proper error handling for numeric conversions
• Validate number ranges align with downstream system constraints
