Integrations
Make.com
The Make.com integration block allows you to trigger complex automation scenarios within your bot flows, enabling seamless data exchange and workflow automation between QuickBot and Make.com.
Configure the response module to return the data you need in your bot, then use response variable mapping to save this data to bot variables for use in subsequent blocks.
Configuration Options
Basic Setup

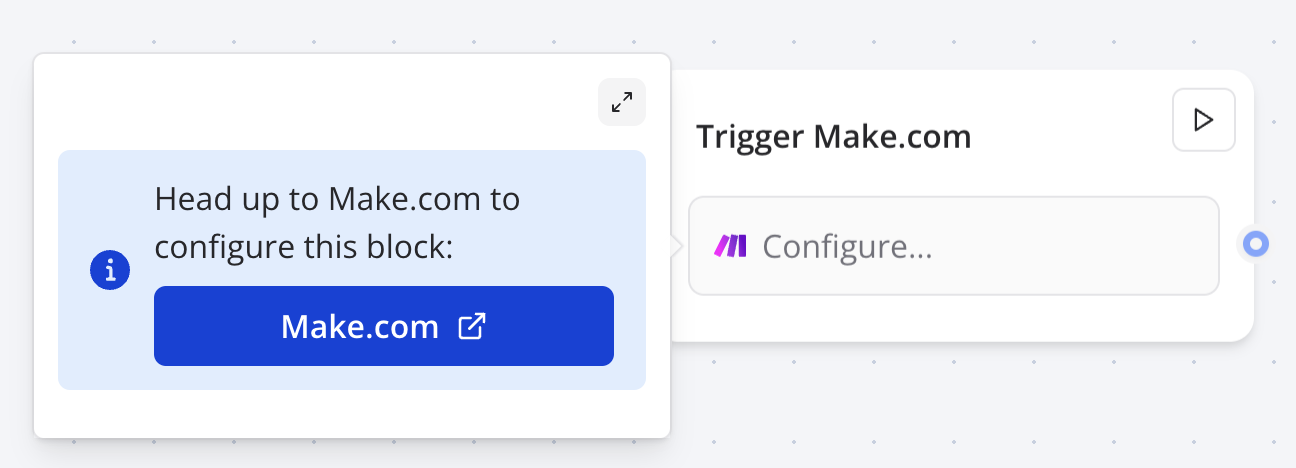

- Insert a Make.com block where you want to trigger the scenario:
- In Make.com, create a new scenario and add a “Webhook” trigger module
- Copy the webhook URL provided by Make.com
- The Make.com block will automatically detect when the webhook URL is configured and show “Your scenario is correctly configured 🚀“
Webhook Configuration
The Make.com integration uses QuickBot’s advanced HTTP request system, providing comprehensive webhook configuration options:- URL: The webhook endpoint provided by Make.com (automatically configured)
- Method: HTTP method (GET, POST, PUT, DELETE, PATCH) - defaults to POST
- Query Parameters: Add URL parameters for data filtering or API requirements
- Headers: Custom headers for authentication or content type specification
- Request Body: JSON payload sent to Make.com with bot data
Advanced Configuration Options
Enable “Advanced Configuration” to access:- Execute on Client: Choose whether the request runs on the client-side or server-side
- Custom Body: Toggle to manually configure the JSON request body
- Timeout: Set request timeout (1-300 seconds, default varies by plan)
- Variable Values for Test: Define test values for variables when testing the integration
Features
Automation Capabilities
- Scenario Triggering: Instantly trigger Make.com scenarios from your bot flow
- Real-time Data Transfer: Send bot conversation data, user inputs, and variables to Make.com
- Multi-step Workflows: Chain complex automation sequences across multiple platforms
- Conditional Logic: Use Make.com’s filters and routers for advanced workflow control
Data Transfer
- Variable Support: Send any bot variable as part of the webhook payload
- Dynamic Content: Include user responses, conversation context, and calculated values
- Structured Data: Automatically format data as JSON for Make.com processing
- Response Handling: Capture and use data returned from Make.com scenarios
Integration Testing
- Test Request Button: Built-in testing functionality to verify webhook connectivity
- Response Preview: View the exact response received from Make.com
- Debug Information: Detailed error messages for troubleshooting connection issues
- Variable Testing: Test scenarios with specific variable values
Advanced Features
Complex Workflows
- Multi-stage Automation: Create workflows spanning multiple platforms through Make.com
- Data Transformation: Use Make.com’s data processing capabilities to transform bot data
- External API Integration: Connect to hundreds of services through Make.com’s integrations
- Scheduled Actions: Trigger time-based actions and follow-ups
Response Data Mapping
Configure response variable mapping to capture data returned by Make.com:- Execute a test request to see the response structure
- Use the “Save in Variables” section to map response fields to bot variables
- Reference returned data in subsequent bot blocks
Error Handling
- Timeout Configuration: Prevent hanging requests with configurable timeouts
- Status Code Handling: Process different HTTP response codes appropriately
- Fallback Logic: Continue bot flow even if Make.com request fails
- Retry Mechanisms: Configure retry logic in Make.com scenarios
Best Practices
Workflow Design
- Strategic Placement: Position Make.com blocks at logical workflow transition points
- Data Preparation: Ensure all required variables are collected before triggering scenarios
- Error Paths: Design alternative conversation flows for integration failures
- User Experience: Consider adding loading messages during webhook execution
Performance Optimization
- Timeout Settings: Set appropriate timeouts based on scenario complexity
- Payload Optimization: Send only necessary data to reduce processing time
- Async Processing: Use Make.com’s asynchronous capabilities for long-running tasks
- Resource Management: Monitor Make.com operation usage to avoid limits
Security and Reliability
- Webhook Security: Keep webhook URLs confidential and regenerate if compromised
- Data Validation: Validate data in Make.com scenarios before processing
- Monitoring: Set up Make.com notifications for failed scenario executions
- Backup Flows: Design alternative workflows for critical integrations
Troubleshooting
Connection Issues
Problem: “Test request” fails or times out- Verify the webhook URL is correctly copied from Make.com
- Check that the Make.com scenario is active and published
- Ensure no network firewalls are blocking the connection
- Try increasing the timeout value in advanced settings
- Confirm the scenario has a webhook trigger module
- Verify the webhook is set to receive data immediately
- Check Make.com’s execution history for error details
Data Flow Problems
Problem: Variables not appearing in Make.com- Ensure variables have values when the webhook executes
- Check that the request body includes the necessary variable references
- Use the test functionality to preview the exact data being sent
- Verify response variable mapping configuration
- Check that the response structure matches the mapped paths
- Ensure target variables exist in your bot
Webhook Troubleshooting
Problem: HTTP error codes (400, 401, 403, 500)- 400 Bad Request: Check request body format and required fields
- 401 Unauthorized: Verify authentication headers if required
- 403 Forbidden: Confirm webhook URL and permissions
- 500 Server Error: Check Make.com scenario for configuration errors
- Test with consistent variable values to isolate issues
- Review Make.com execution logs for processing errors
- Check for rate limiting or quota restrictions
Return Data from Make.com

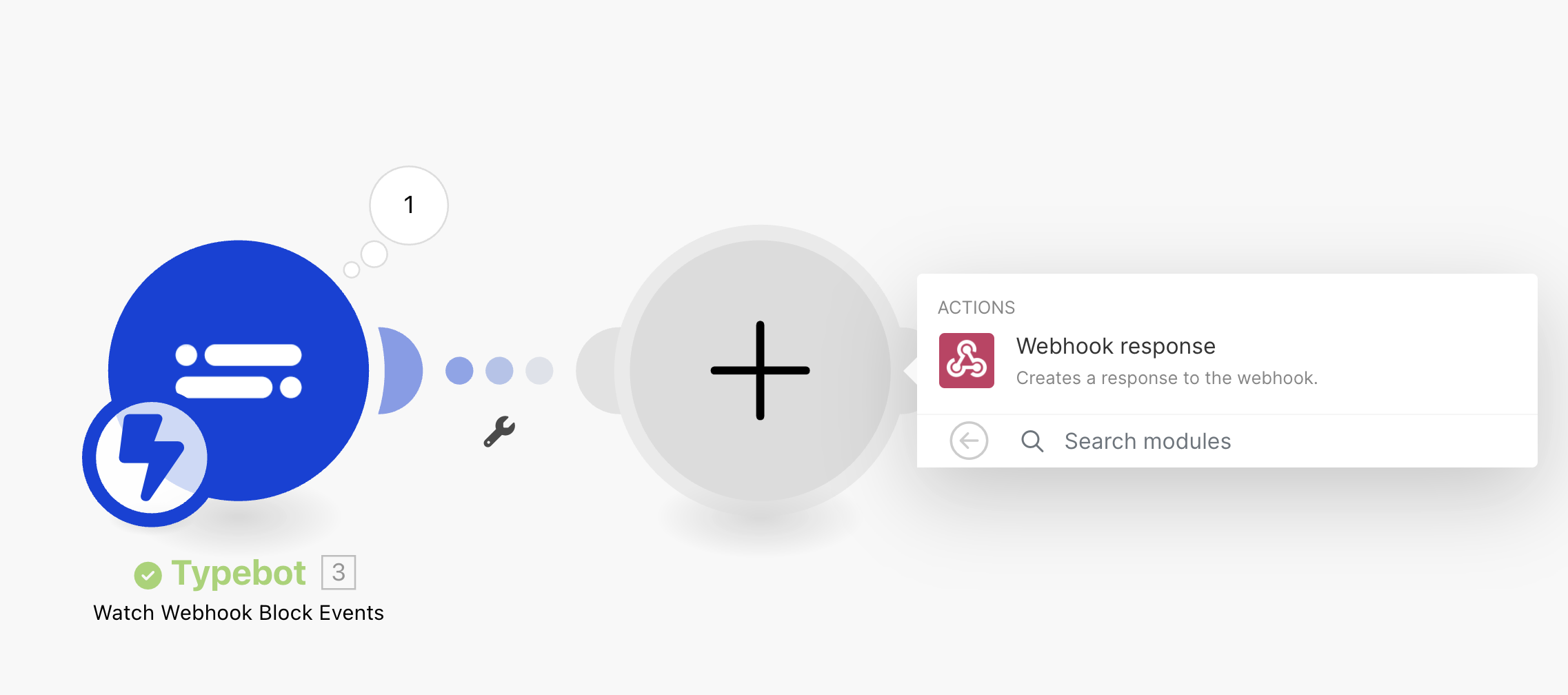

To capture data returned by Make.com scenarios, add a “Webhook response” module at the end of your scenario:
