NocoDB

​

General

​

Configuration Options

​

Prerequisites

1. NocoDB Account: Sign up at NocoDB or set up self-hosted instance
2. Database Connected: Connect your database to NocoDB
3. API Token: Generate an API token from your account settings
4. Table/View IDs: Identify the specific tables and views you want to access

​

Authentication Setup

1. Navigate to your NocoDB dashboard
2. Go to Account Settings → API Tokens
3. Generate a new API token or copy an existing one
4. In QuickBot, add the NocoDB block to your flow
5. Click Add NocoDB credentials
6. Enter your Base URL (default: https://app.nocodb.com for cloud)
7. Enter your API Token in the password field
8. Save the credentials

​

Finding Table and View IDs

​

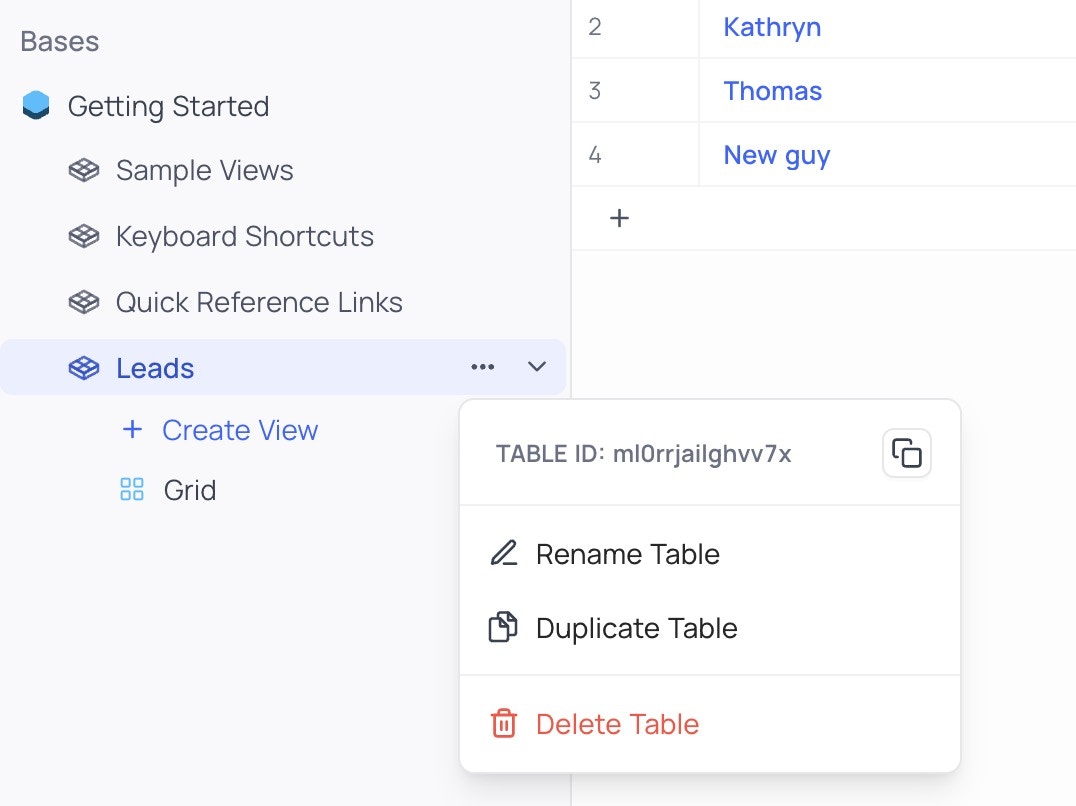

Table ID

1. Go to your NocoDB dashboard
2. Navigate to the desired table
3. Click the 3 dots button next to the table name
4. The Table ID will be displayed in the menu

​

View ID

1. Navigate to the desired view within a table
2. Click the 3 dots button next to the view name
3. The View ID will be displayed in the menu

​

Configuration Parameters

• Base URL: NocoDB instance URL (default: https://app.nocodb.com)
• API Token: Your NocoDB API token (required, stored encrypted)
• Table ID: Identifier of the table to interact with (required)
• View ID: Optional view identifier for filtered operations
• Field Mappings: Map database fields to QuickBot variables
• Filter Conditions: Advanced filtering for record operations

​

Features

​

Core Capabilities

​

Search Records

• Multi-condition Filtering: Support for complex filter combinations
• Operator Support: Equal to, Not equal, Contains, Greater than, Less than, Is set, Is empty, Starts with, Ends with
• Return Options: All, First, Last, or Random records
• View-specific Search: Search within specific table views
• Field Mapping: Map search results to QuickBot variables

​

Create Records

• Dynamic Field Assignment: Set field values using variables and static content
• Multi-field Support: Create records with multiple fields in a single operation
• Data Type Handling: Automatic data type conversion and validation
• Error Validation: Comprehensive field validation before record creation

​

Update Existing Records

• Filter-based Updates: Update records matching specific filter conditions
• Batch Updates: Update multiple records simultaneously
• Field-specific Updates: Update only specified fields while preserving others
• Conditional Updates: Update records based on complex filter logic

​

Data Handling

• Type Safety: Automatic data type conversion and validation
• NULL Handling: Proper handling of empty and null values
• Large Dataset Support: Optimized for tables with thousands of records
• Unicode Support: Full support for international characters and special symbols

​

Variable Support

• Dynamic Filtering: Use variables in filter conditions for dynamic searches
• Field Mapping: Map database fields directly to QuickBot variables
• Conditional Logic: Variable-based conditional operations
• Real-time Updates: Variables updated immediately after database operations

​

Advanced Features

​

Filtering System

​

Filter Operators

• Equal to: Exact match filtering
• Not equal: Exclusion filtering
• Contains: Partial string matching
• Greater than: Numeric and date comparisons
• Less than: Range filtering
• Is set: Check for non-null values
• Is empty: Check for null or empty values
• Starts with: Prefix matching
• Ends with: Suffix matching

​

Complex Filtering

• Multiple Conditions: Combine multiple filter conditions with AND/OR logic
• Nested Filters: Support for complex nested filter structures
• Dynamic Values: Use variables in filter conditions for real-time filtering
• View Integration: Apply filters within specific table views

​

Performance Optimization

• Query Optimization: Efficient API calls with optimized query parameters
• Result Limiting: Configurable result limits to prevent oversized responses
• Pagination Support: Handle large datasets with automatic pagination
• Connection Pooling: Efficient connection management for high-volume operations

​

Error Handling

• API Error Management: Comprehensive handling of NocoDB API errors
• Field Validation: Pre-validation of field names and data types
• Connection Validation: Automatic validation of database connectivity
• Detailed Logging: Comprehensive error reporting with specific details

​

Security Features

• Encrypted Credentials: API tokens stored with encryption
• Access Control: Role-based access through NocoDB permissions
• SSL/TLS Support: Secure connections to NocoDB instances
• Input Sanitization: Automatic sanitization of user inputs

​

Actions Reference

​

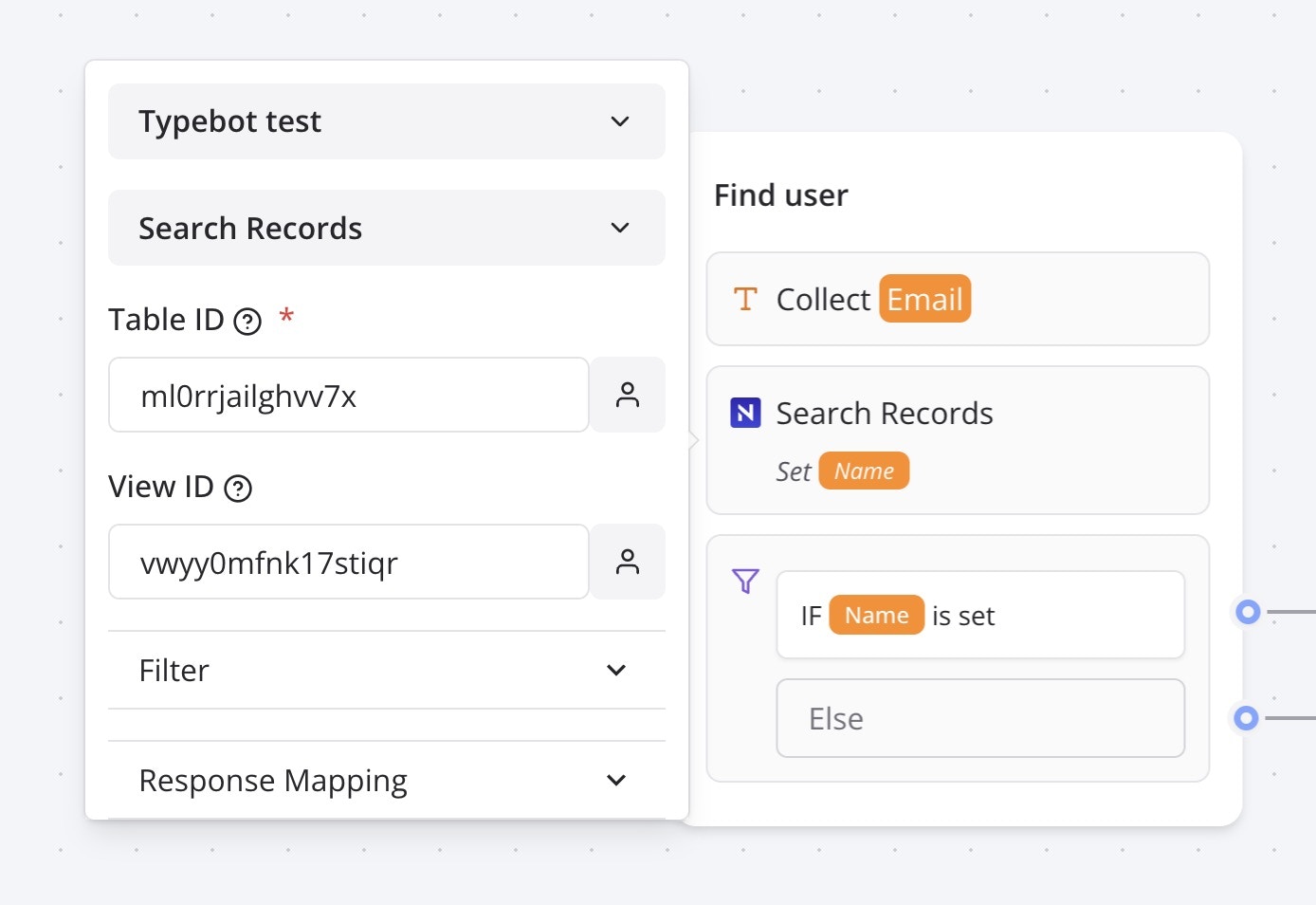

Search Records

• Table ID: Identifier of the target table

• View ID: Specific view to search within
• Filter: Complex filter conditions
• Return Type: All, First, Last, or Random
• Response Mapping: Field-to-variable mappings

Table ID: tbl_abc123
View ID: viw_def456 (optional)
Filter: Status = "Active" AND Priority > 5
Return Type: First
Response Mapping:
  - Field: "customer_name" → Variable: "customerName"
  - Field: "order_total" → Variable: "orderAmount"

​

Create Record

• Table ID: Identifier of the target table
• Fields: Array of field name-value pairs

Table ID: tbl_abc123
Fields:
  - Field: "customer_name", Value: "{{customerName}}"
  - Field: "email", Value: "{{userEmail}}"
  - Field: "status", Value: "new"

​

Update Existing Record

• Table ID: Identifier of the target table
• Filter: Conditions to identify records to update
• Updates: Field modifications to apply

• View ID: Specific view for filtering

Table ID: tbl_abc123
Filter: customer_id = "{{customerId}}"
Updates:
  - Field: "status", Value: "completed"
  - Field: "updated_at", Value: "{{currentTimestamp}}"

​

Best Practices

​

Implementation Recommendations

1. Field Mapping Strategy: Plan your field-to-variable mappings before implementation
2. Filter Optimization: Use specific filters to minimize data transfer and improve performance
3. Error Handling: Always implement fallback logic for database operations
4. Data Validation: Validate data types and formats before database operations

​

Security Best Practices

1. Token Management: Regularly rotate API tokens for enhanced security
2. Access Control: Use NocoDB’s role-based permissions to limit access
3. Data Sanitization: Always sanitize user inputs before database operations
4. Audit Trails: Implement logging for all database modifications

​

Performance Guidelines

1. Query Optimization: Use specific filters instead of retrieving all records
2. Result Limiting: Set appropriate limits for large datasets
3. Field Selection: Map only necessary fields to reduce data transfer
4. Connection Management: Reuse connections when possible

​

Data Management Guidelines

1. Consistent Naming: Use consistent field naming conventions
2. Data Types: Ensure data types match between QuickBot and NocoDB
3. NULL Handling: Plan for null and empty value scenarios
4. Backup Strategy: Implement regular backups for critical data operations

​

Troubleshooting

​

Common Issues

​

Authentication Problems

• Invalid API Token: Verify the API token is correctly copied from NocoDB
• Expired Token: Check if the API token has expired and needs renewal
• Permission Denied: Ensure the token has necessary permissions for the target table
• Base URL Mismatch: Verify the correct NocoDB instance URL

​

Table and View Issues

• Invalid Table ID: Verify the Table ID exists and is accessible
• View Not Found: Check that the View ID is correct and accessible
• Field Name Mismatch: Ensure field names match exactly with NocoDB schema
• Permission Errors: Verify access permissions for the target table/view

​

Data Operation Problems

• Filter Syntax Errors: Check filter syntax and operator usage
• Data Type Mismatches: Ensure data types match field requirements
• Required Field Missing: Verify all required fields are provided
• Constraint Violations: Check for database constraint violations

​

Performance Issues

• Slow Queries: Optimize filters and consider indexing in NocoDB
• Large Result Sets: Implement pagination or result limiting
• Connection Timeouts: Check network connectivity and NocoDB performance
• Memory Usage: Monitor memory usage with large datasets

​

Debugging Steps

1. Verify Credentials: Test API token in NocoDB API directly
2. Check Table Access: Confirm table and view permissions
3. Validate Filters: Test filter conditions in NocoDB interface
4. Review Logs: Check QuickBot logs for detailed error messages
5. Test Incrementally: Start with simple operations and add complexity

​

Error Messages

• “API key is required”: Ensure API token is configured in credentials
• “Field [name] does not exist in the table”: Verify field name spelling and existence
• “At least one filter is required”: Add filter conditions for update operations
• “Couldn’t find any rows matching the filter”: Verify filter conditions and data existence
• HTTP error responses: Check NocoDB API documentation for specific error codes
