Webhook

​

Configuration Options

​

Basic Configuration

• URL: The endpoint URL where the request will be sent (supports variable interpolation)
• Method: HTTP method (GET, POST, PUT, PATCH, DELETE, HEAD, CONNECT, OPTIONS, TRACE)
• Execution Location: Choose between server-side or client-side execution

​

Advanced Configuration

• Query Parameters: Add URL query parameters with variable support
• Headers: Set custom HTTP headers including authentication tokens
• Custom Body: Define request body with JSON, form data, or custom formats
• Timeout: Configure request timeout (1-600000ms, default: 10000ms)
• Variable Mapping: Map response data to bot variables for reuse

​

Features

​

Variable Support

• URL endpoints
• Query parameters
• Headers
• Request body
• Test values for debugging

​

Response Processing

• Automatic JSON response parsing
• Deep key extraction from nested objects
• Variable mapping from response data
• Test response preview with syntax highlighting

​

Error Handling

• Request timeout management
• HTTP status code handling
• Detailed error messages in logs
• Test mode for debugging before deployment

​

Advanced Features

​

Custom Request Body

{
  "name": "{{Name}}",
  "email": "{{Email}}",
  "timestamp": "{{Now}}",
  "metadata": {
    "source": "quickbot",
    "bot_id": "{{Bot ID}}"
  }
}

​

Authentication Headers

• Authorization: Bearer {{API_Token}}
• X-API-Key: {{API_Key}}
• Content-Type: application/json

​

Query Parameters

• user_id={{User_ID}}
• timestamp={{Now}}
• format=json

​

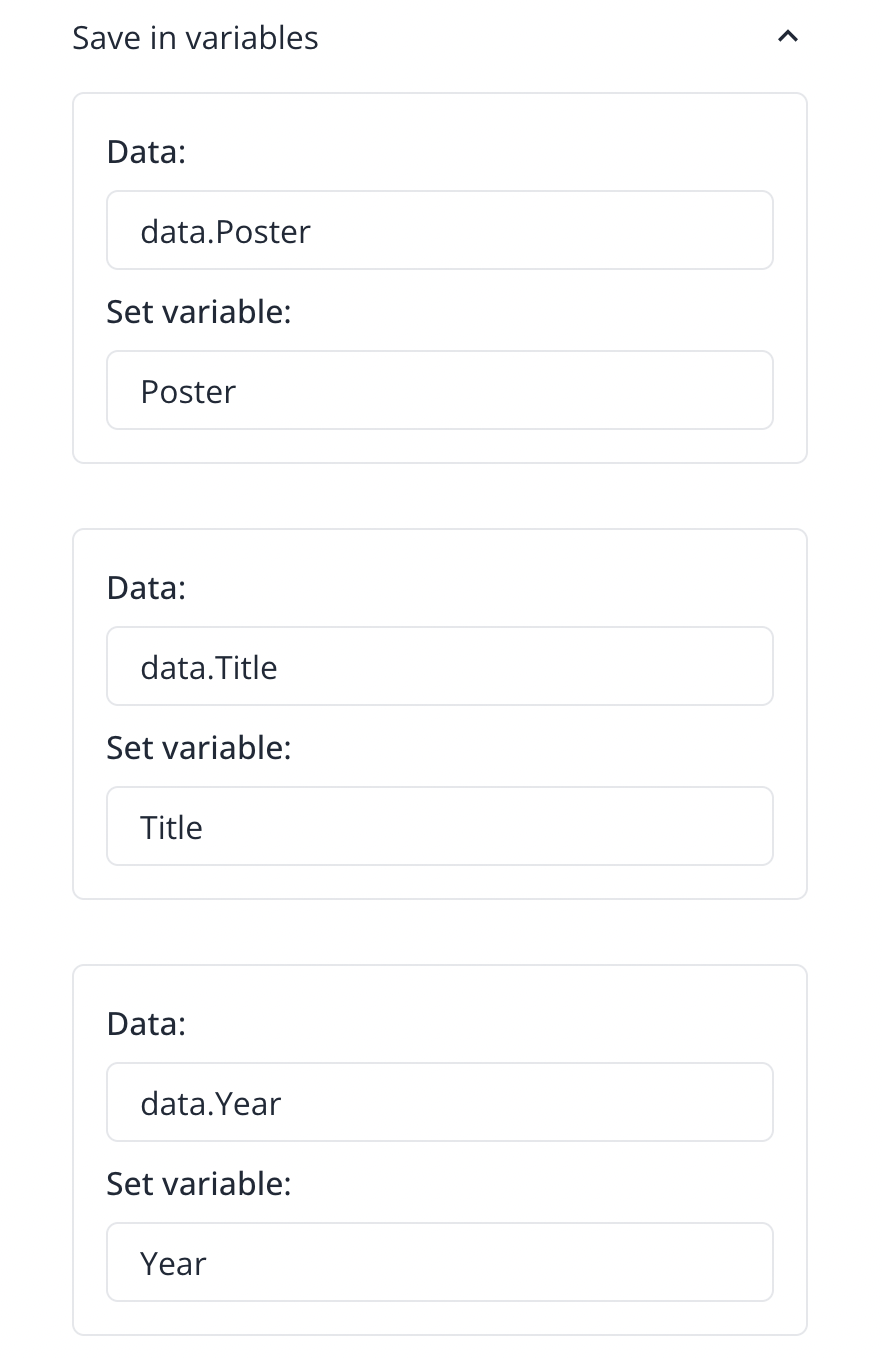

Response Variable Mapping

• Extract user information from API responses
• Store calculated values
• Capture IDs for follow-up requests

​

Best Practices

​

Security Considerations

• Store sensitive data (API keys, tokens) in variables, not directly in configuration
• Use HTTPS endpoints whenever possible
• Implement proper authentication headers
• Validate response data before using in bot logic

​

Performance Optimization

• Set appropriate timeout values based on API response times
• Use server-side execution for sensitive operations
• Cache frequently requested data when possible
• Implement error handling for failed requests

​

Testing and Debugging

• Use the “Test the request” feature to validate configuration

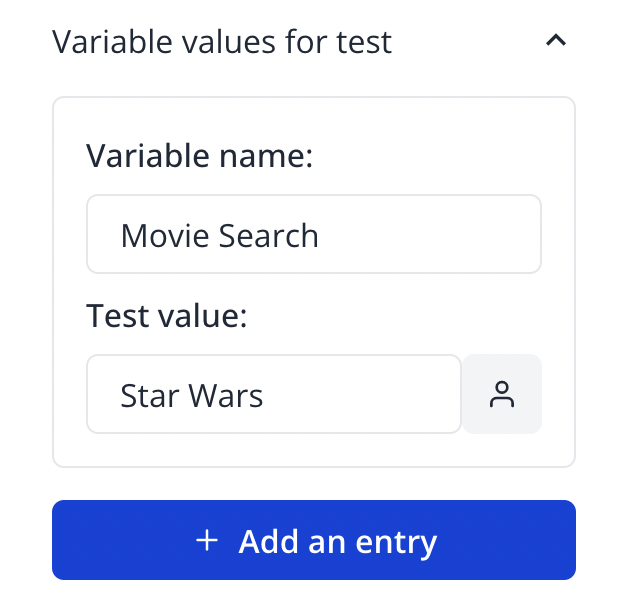

• Set test values for variables to simulate real scenarios
• Check bot logs for detailed error information
• Verify response structure before mapping to variables

​

Example: Employee Management API

​

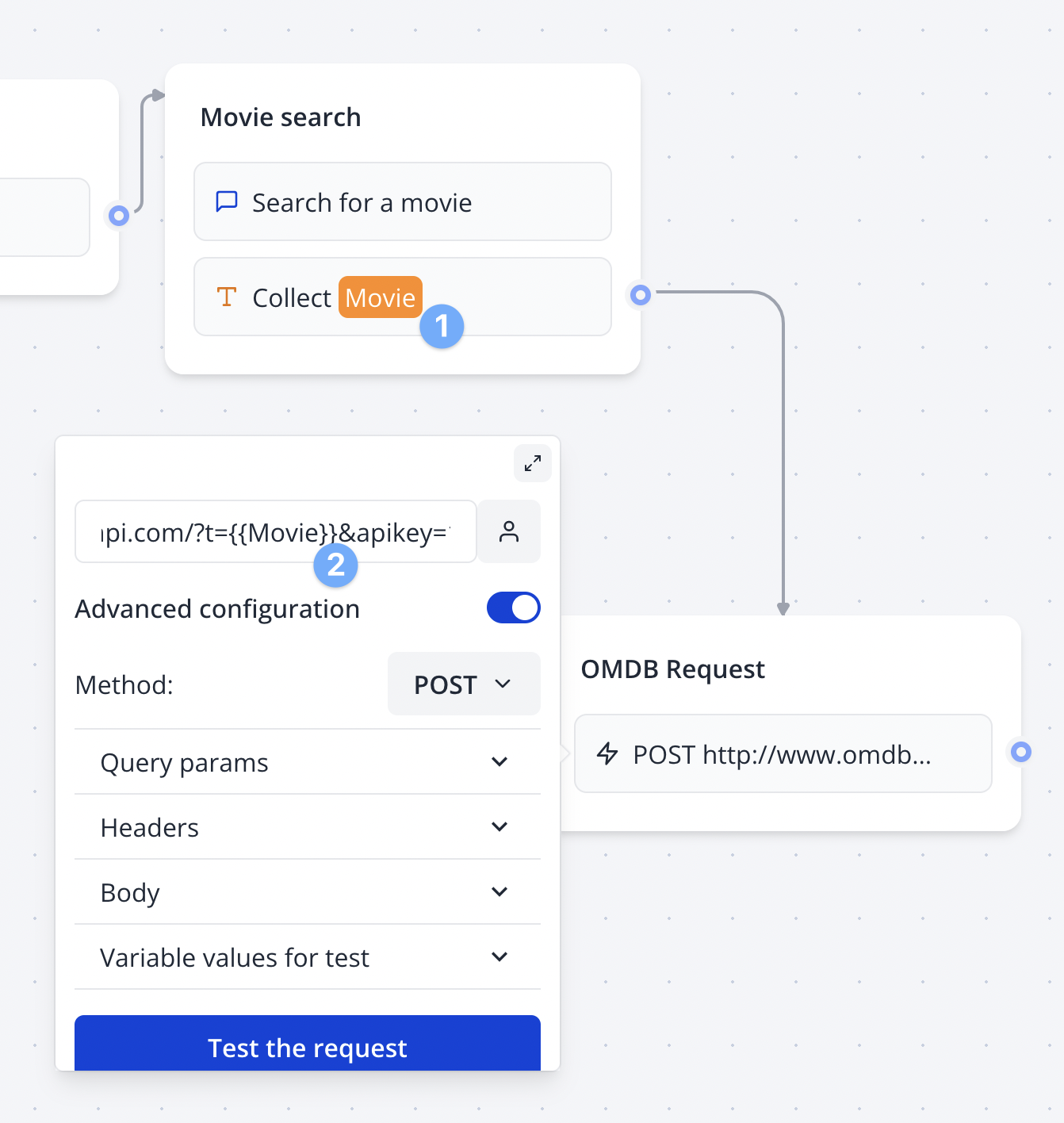

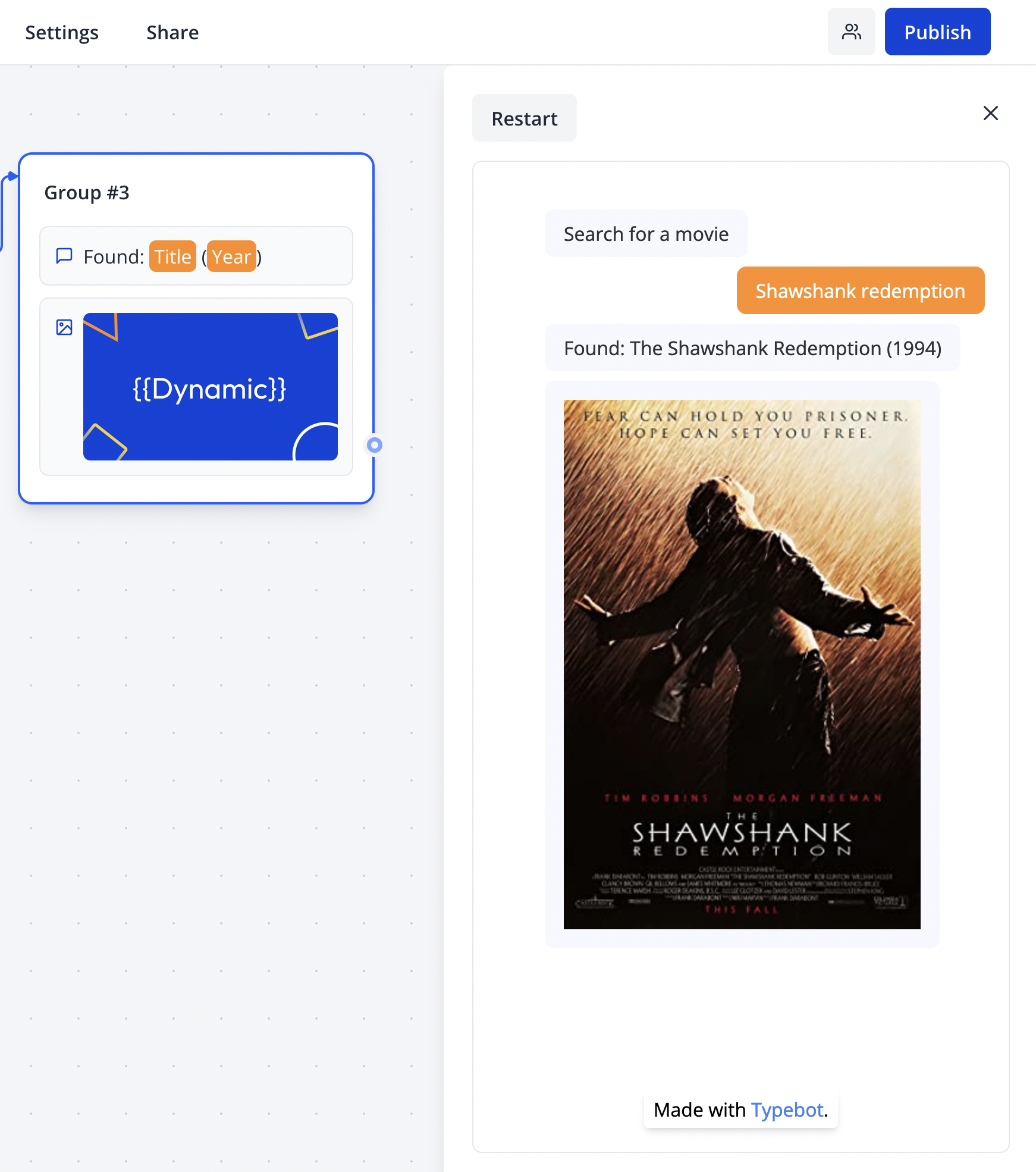

Example: Movie Information API

http://www.omdbapi.com/?t={{Movie_Title}}&apikey={{OMDB_API_Key}}

​

Integration Capabilities

• Connect with any REST API
• Support for GraphQL endpoints
• Webhook triggers for real-time updates
• Third-party service integrations (Zapier, Make.com, etc.)
• Custom authentication flows
• Data transformation and validation

​

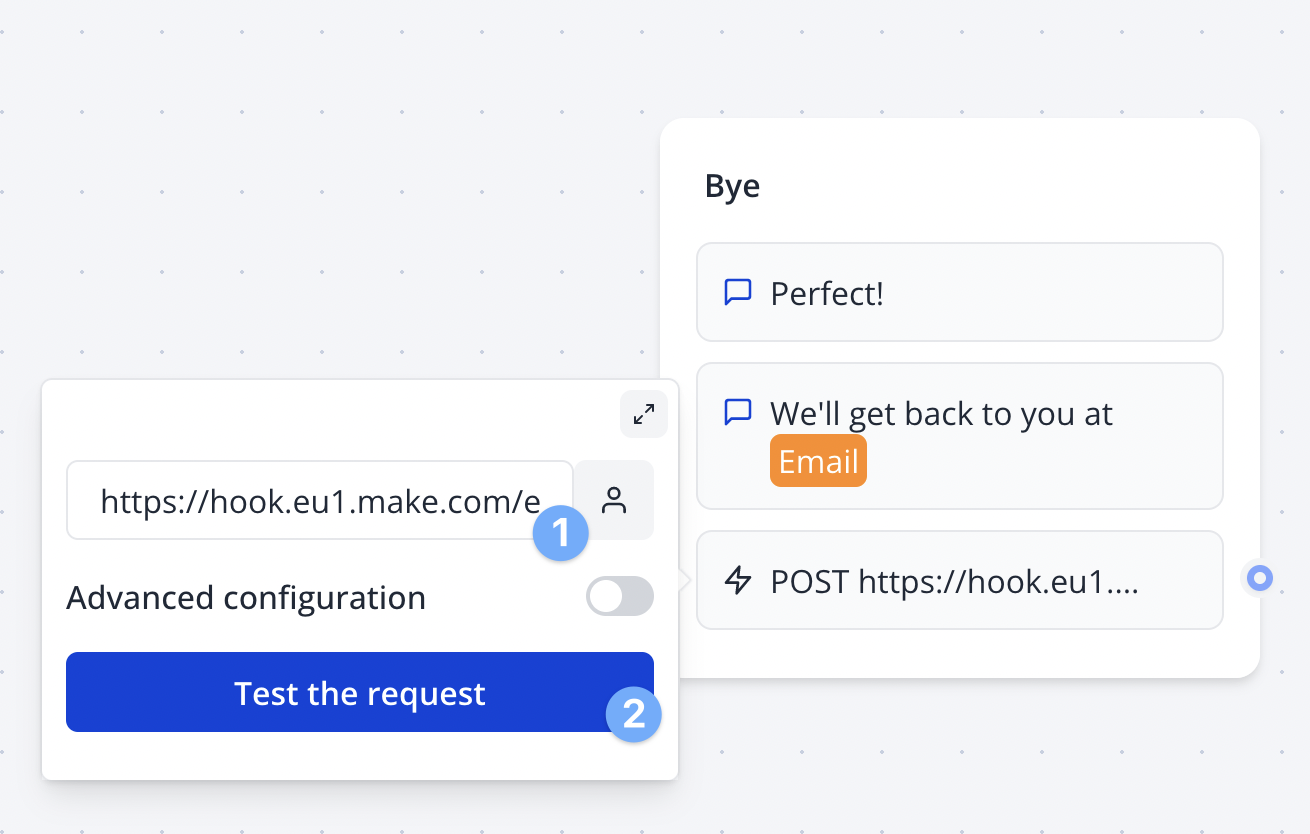

Third-Party Webhook Integration

​

Quick Setup for Automation Services

1. Get Webhook URL: Copy the webhook URL from your automation platform
2. Paste URL: Enter the URL in the webhook block
3. Test Request: Click “Test the request” to send sample data
4. Customize Payload: Modify the request body to include specific bot data

​

Custom Payload Configuration

{
  "bot_id": "{{Bot ID}}",
  "user_data": {
    "name": "{{Name}}",
    "email": "{{Email}}",
    "phone": "{{Phone}}"
  },
  "form_data": {
    "message": "{{Message}}",
    "timestamp": "{{Now}}"
  },
  "metadata": {
    "source": "quickbot_webhook",
    "conversation_id": "{{Conversation ID}}"
  }
}

​

Advanced Configuration

​

Timeout Settings

• Default Timeout: 10 seconds (10,000ms)
• Configurable Range: 1ms to 600,000ms (10 minutes)
• Failure Behavior: Block fails if timeout exceeded
• Location: Advanced Parameters section

​

Execution Context

• Server-side Execution: Secure, hidden from client, supports all HTTP methods
• Client-side Execution: Faster for simple requests, CORS restrictions may apply
• Default: Server-side execution recommended for security

​

Request Methods

• GET: Retrieve data from APIs
• POST: Create new resources or send data
• PUT: Update existing resources completely
• PATCH: Partial resource updates
• DELETE: Remove resources
• HEAD: Get headers without body
• OPTIONS: Check supported methods
• CONNECT/TRACE: Advanced networking (rarely used)

​

Troubleshooting

​

Common Configuration Issues

• Check the logs for detailed error messages
• Verify URL format and accessibility
• Confirm API endpoint accepts your HTTP method
• Validate authentication headers and credentials

• Ensure variables exist before using in requests
• Check variable names match exactly (case-sensitive)
• Verify test values are set for debugging
• Confirm variable interpolation syntax: {{Variable_Name}}

• Verify response structure matches mapping configuration
• Check that response keys exist in API response
• Ensure proper JSON format in API response
• Test response structure with “Test the request” feature

​

Platform-Specific Considerations

• Switch to server-side execution for cross-origin requests
• Contact API provider about CORS policy
• Use proxy endpoints when necessary

• All blocks between user inputs are computed server-side
• Results are processed before displaying to user
• Use proper flow design for dependent webhook calls

• Verify API key/token validity and permissions
• Check authentication method (Bearer token, API key header, etc.)
• Ensure credentials are stored in variables, not hardcoded
• Test authentication with API documentation examples

​

Performance Issues

• Increase timeout for slow APIs
• Optimize request payload size
• Consider caching for frequently requested data
• Monitor API rate limits and usage quotas
